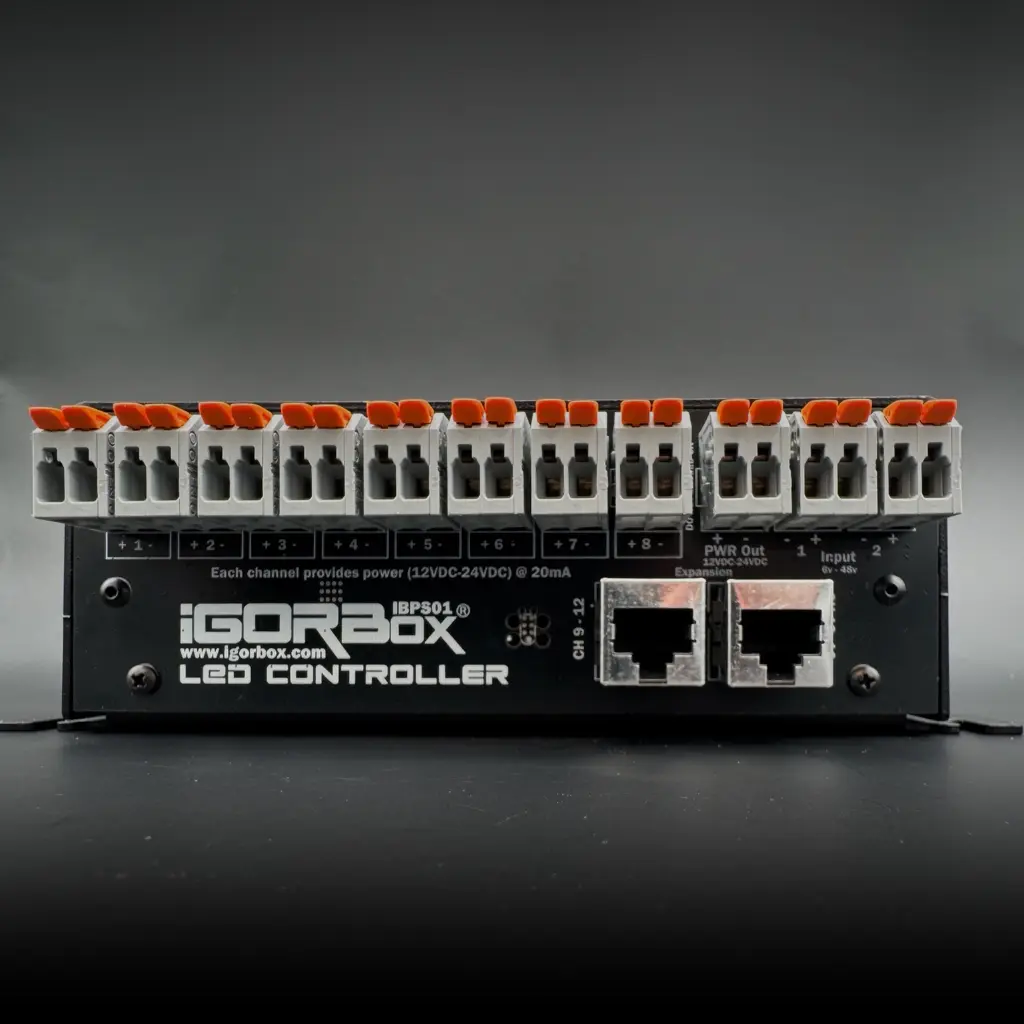

IgorBox LED Controller
The LED Controller was designed to let you control 16 individual dimmable channels for panel LEDS. This can directly drive all the lights on your escape room puzzle board with individual patterns and dimming set by you. Fully customize what that panel is doing at any given time. When combined with our Input 16, you can build incredibly immersive and dynamic puzzles.
For haunted attractions, this controller lets drive pinspots and other mini spot lights for show and element lighting. The scene isn't done until properly lit!
With programable control of each individual channel dimming from 0% to 100% the possibilities are endless. Our IgorBox studio let's you precisely design the exact effects that you need to stand out!
When combined with our RGBW-PWR 4 channel breakout, you can power up to 120 watts* of LED lights or speed controlled motors per breakout!
Features
- 16x Individually Dimmable LED channels 12vdc or 24vdc
- Expandable to power bigger lights with our RGBW-PWR Breakout board.
- Can drive motor speed control
- Channels 9-12 and 13-16 can be remotely located via Ethernet cables
- Dimmable RGB status and Channel LEDs
- Easywire™ LED Indicators
- Ethernet and WiFi for easy connectivity
- Genuine WAGO® connectors for easy and strong wiring connections
What's in the Box?
- 1x LED Controller
- 1x 12VDC 1A Power Supply
- 2x 4 Channel Breakout boards
But how do I know which wire is which on the connectors?
We created Easywire™ indicators which will guide you through wiring your devices your IgorBox and help you make sure you're connecting the right wire to the right connector! Our library of supported Easywire™ is always growing.
Cloud-managed. OTA-updatable. Designed and assembled in the U.S. Backed by our 30-day return policy and 1 year warranty because we trust the gear and we want you to do the same.
*24V @ 5 amps = 120W. each channel at 24V can drive 48W
