IgorBox Output 8 MKII

The Output 8 MKII is the next evolution of the Early Access version of the IgorBox.

With the MKII, we implemented feedback from our early access testers into an even more robust and useful controller.

Features

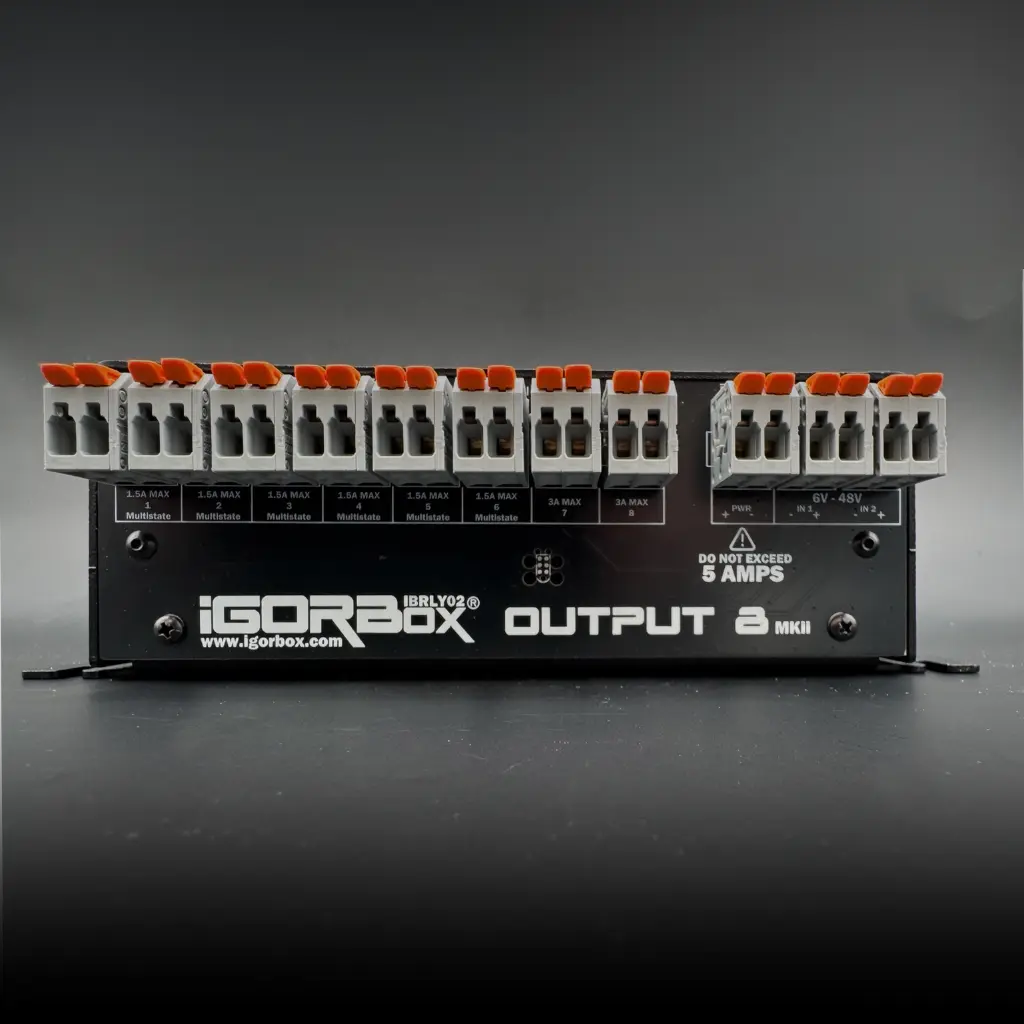

• 6x 1.5Amp capable Multistate Relay™ outputs
• 2x 3Amp capable Standard Relay outputs
• 2x Optically isolated inputs

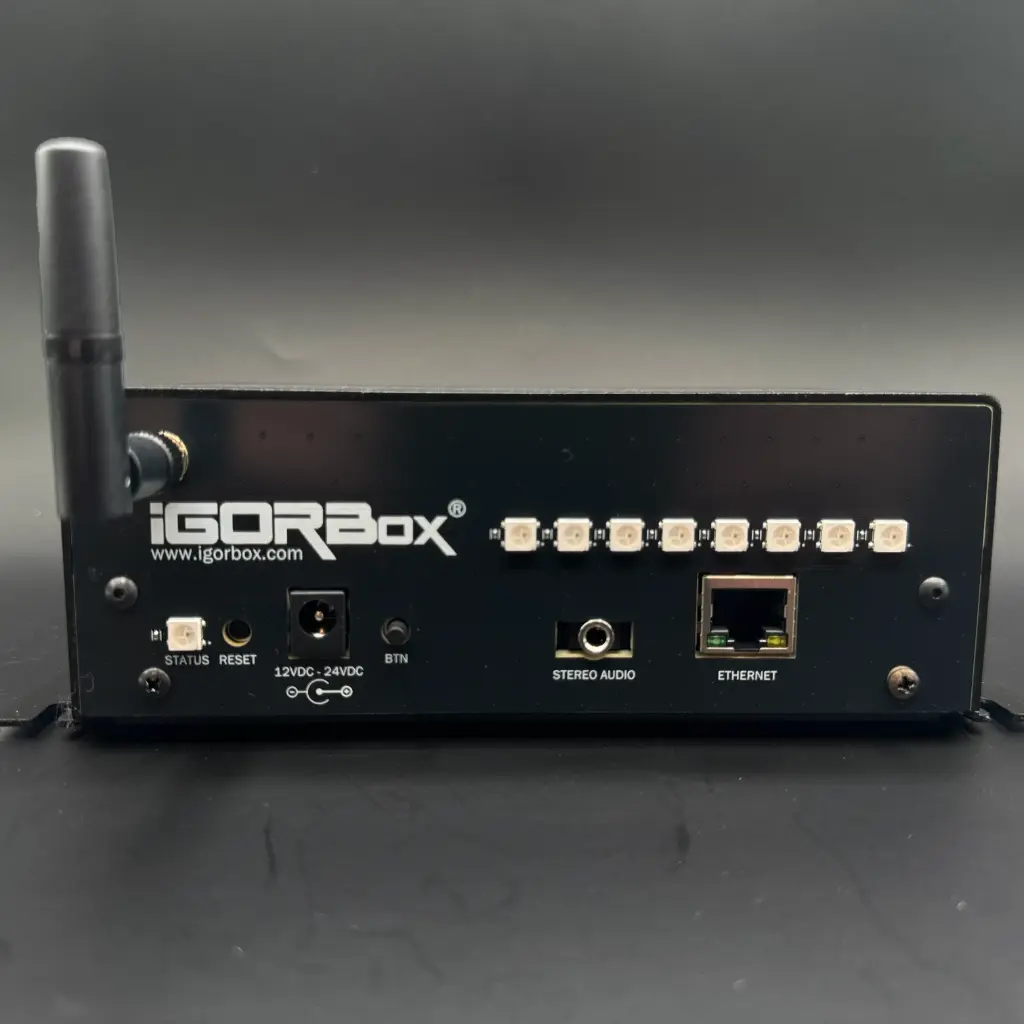

• Dimmable RGB status and Channel LEDs
• Easywire™ LED Indicators
• Ethernet and WiFi for easy connectivity
• Genuine WAGO® connectors for easy and strong wiring connections

What is a Multistate Relay™?

Multistate Relays™ are relay channels that are software configurable to be standard or solid-state powered relay outputs.

In "Standard Relay" mode when you turn a channel on the two wires are shorted together like a light switch.

In "Solid-state Relay" mode when you turn a channel on, one wire is negative and the other wire is positive provided by the power supply you use to power your IgorBox (typically 12VDC)

What's in the Box?

• 1x Output 8 Controller
• 1x 12VDC 1A Power Supply

But how do I know which wire is which on the connectors?

We created Easywire™ indicators which will guide you through wiring your devices your IgorBox and help you make sure you're connecting the right wire to the right connector! Our library of supported Easywire™ is always growing.

Cloud-managed. OTA-updatable. Designed and assembled in the U.S. Backed by our 30-day return policy and 1 year warranty because we trust the gear and we want you to do the same.
