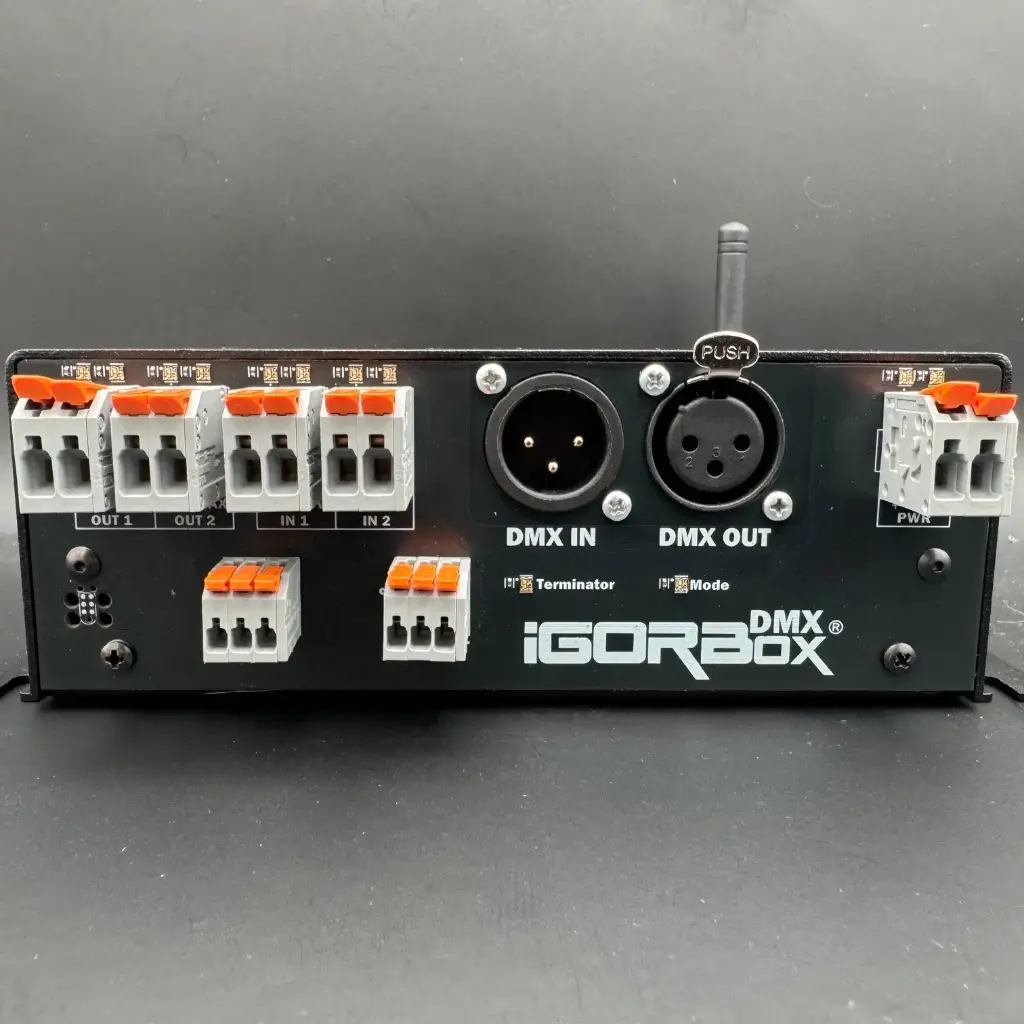

IgorBox DMX

Professional DMX lighting. Connected to your entire show.

Bring professional lighting, moving heads, strobes, fog machines, and DMX-controlled effects into IgorBox Studio. Control a full 512-channel DMX universe alongside your audio, props, and triggers—all synchronized on the same timeline.

Build shows from a fixture library, control lighting directly from your browser, or integrate with your existing DMX console. With DMX recording, fixture-level control, and Safe Zones™, IgorBox DMX brings professional lighting into your connected show-control system.

Key Features

• 512-channel DMX512 universe

• DMX input and output with console integration

• Buffer Mode for selective fixture control and passthrough

• Record DMX sequences into editable IgorBox shows

• Fixture library with visual lighting controls

• Safe Zones™ for configurable channel limits

• Ethernet + WiFi connectivity

• Integrated with IgorBox Studio and Logic Rules

Coming Soon — Currently in Beta

Professional lighting control, without a separate show-control workflow.

Technical Specifications

DMX Control

• 1 × 512-channel DMX universe

• Isolated DMX input and DMX output

• Standard, Buffer, and Fixture operating modes

• Selectable DMX refresh rate: 10, 20, 30, or 44 Hz

• Software-switchable 120Ω input termination

• Hardware failsafe passthrough when unpowered

Inputs & Outputs

• 2 × 1.5A dry-contact relay outputs

• 2 × optically isolated inputs (6–48V AC/DC)

• 3-pin XLR and WAGO® connectors

Audio & Connectivity

• Stereo 3.5mm audio output (MP3, FLAC, WAV)

• 32GB onboard storage

• 10/100 Ethernet and 2.4GHz WiFi

• Local show playback without an internet connection

Hardware

• 16-gauge steel enclosure

• 9–24V DC power input

• Included 12V DC power supply

• Wall mount or optional DIN-rail mounting
